by airwavemarine
$119.00
SKU 150004-5

Custom VHF Marine Antenna

American Made Marine VHF Antenna

All of our marine VHF antennas come assembled with the best high quality materials and care that only passionate antenna people can produce, proudly made in the USA. Each marine VHF antenna is made in a small batch assembly process by hand at our factory in Miami, FL. Quality control along the entire assembly process ensures that you have the best possible antenna for peace of mind when you head off-shore.

VHF Marine Antenna Bullet Points

  • American Made, High Quality, Small Batch Assembly
  • 6dB Omni-Directional Radiation Pattern
  • Internal High Grade Brass Radiating Tubes
  • 30% Thicker Fiberglass Tubes Than The Competition
  • Dual Shield, Ultra Flexible coaxial cable
  • ProConnect Connector System Saves Time and Ensures Quality

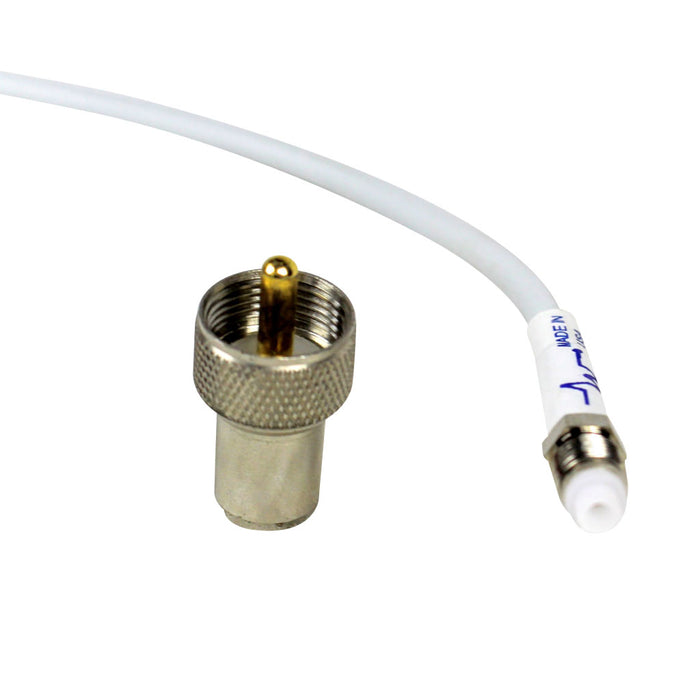

ProConnect Cable System

Machine Crimped Connector

Slim Profile Connector

Screw On Adapter


SPECS SPECS
Frequency Marine 156-162 MHz
Gain 6dBi
Water Surface Enhanced Gain 7/9 dBi
Max Power 75 Watts
SWR 1.4:1 AVG
Bandwidth 6 MHz
Signal Polarization Vertical
Impedance 50 Ohms
Lightning DC Grounded
Overall Length 4' or 8'
Radome Diameter 7/8" to 3/8"
Ferrule Base Stainless Steel or Plastic
Cable Dual Shield, Low Loss
Cable Length Custom
Connector ProConnect PL-259 UHF
Color White, Black
Warranty Lifetime
Assembly Made In USA
