VHF Whip Antenna

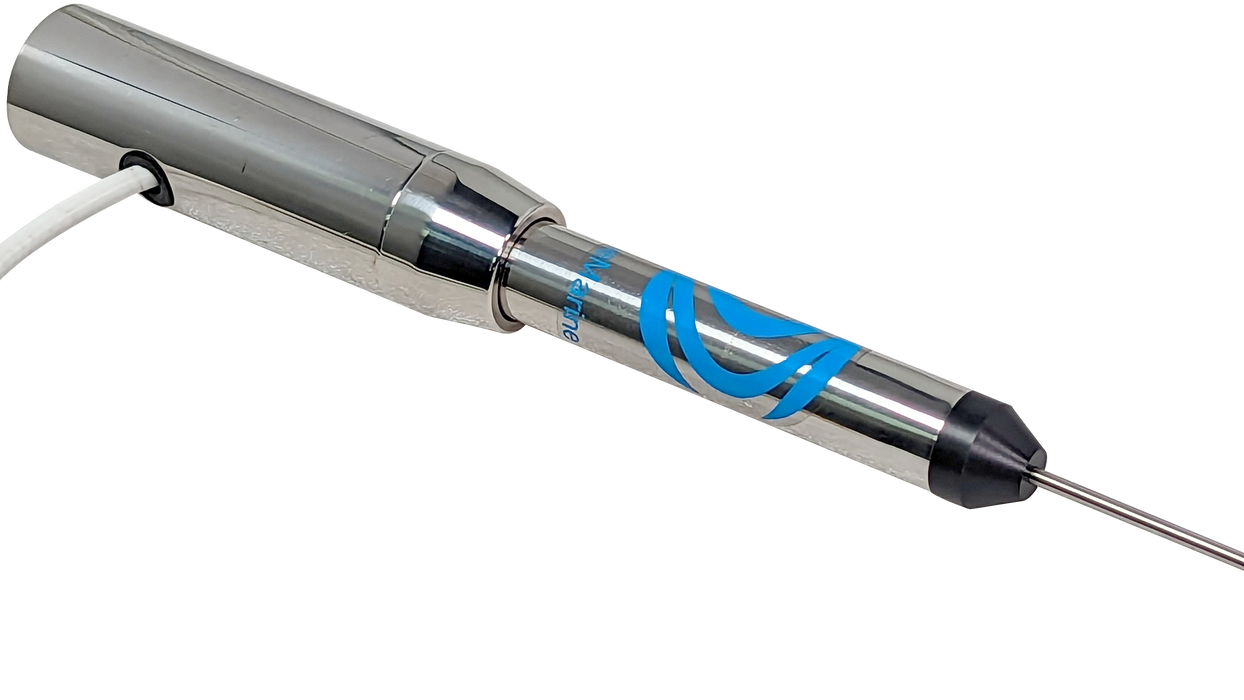

High Grade Marine VHF Whip Antenna

We engineered our powerboat and sailboat marine VHF whip antennas with an ultra tough stainless steel base for increased performance and durability. Our marine VHF whip antennas are built to withstand years of use on your vessel, ensuring that you have reliable communication for years to come.

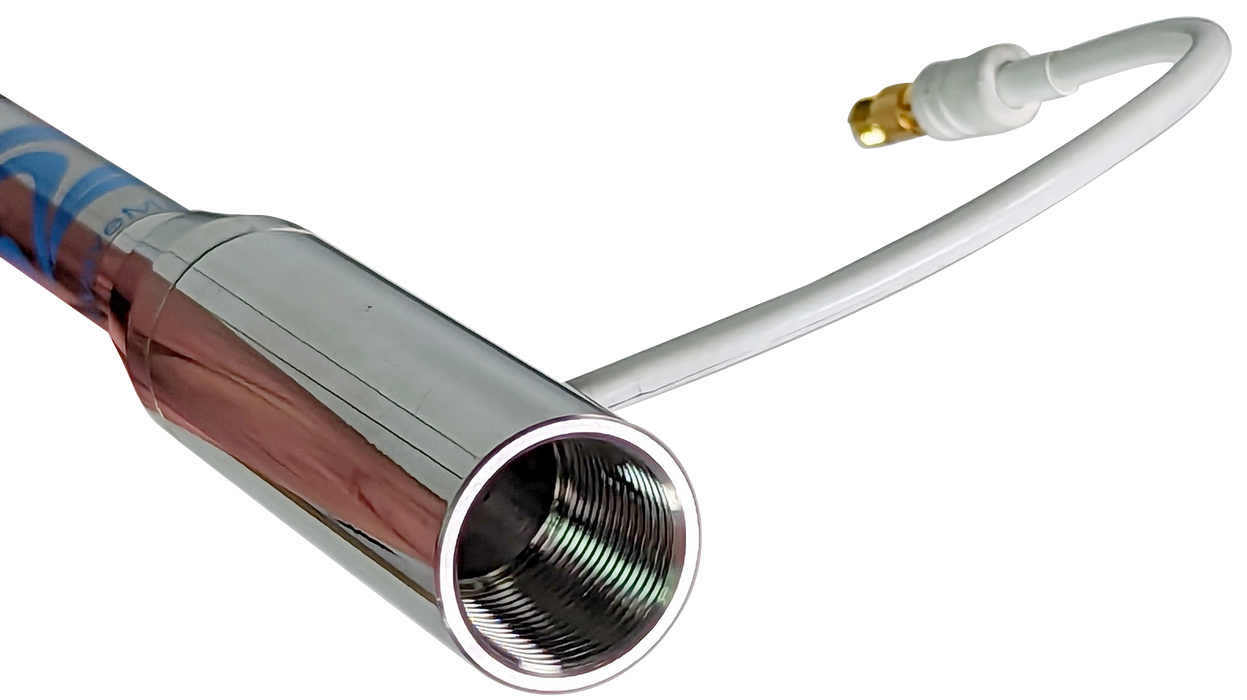

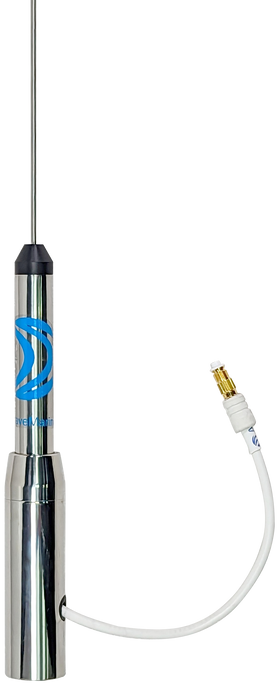

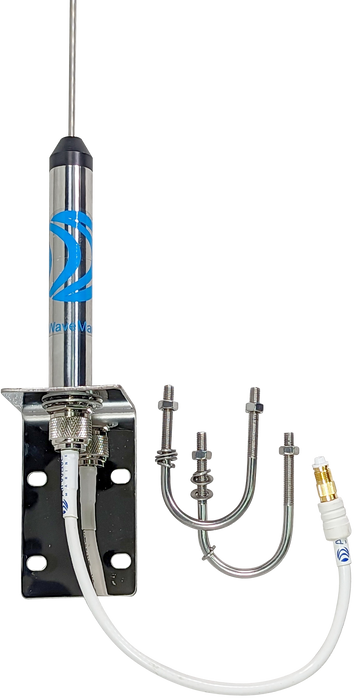

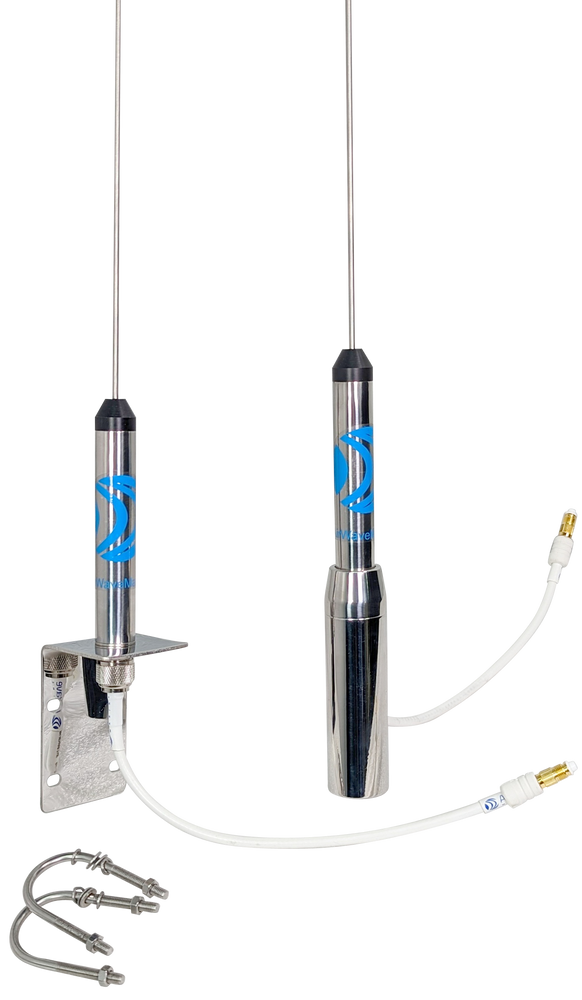

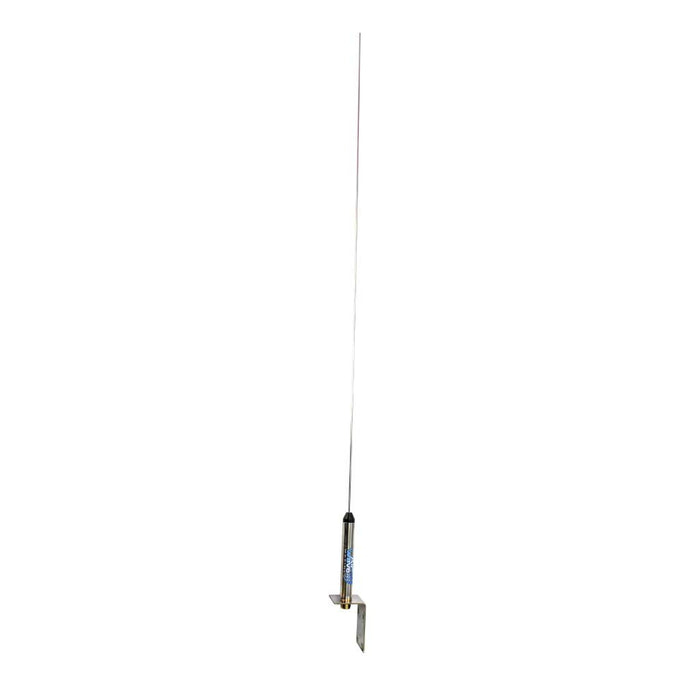

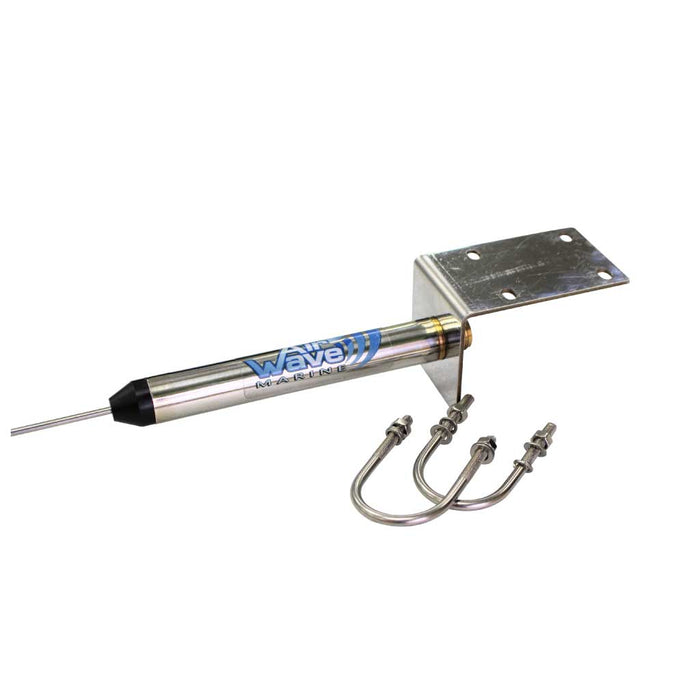

Our powerboat whip antenna model will screw onto any standard marine 1" 14 thread mount. While the sailboat whip antenna option can be secured onto a railing using the included U-bolt system.

  • High Quality, Small Batch Assembly
  • 6dB Omni-Directional Radiation Pattern
  • Reinforced Base
  • Polished Stainless Steel
  • 15' Dual Shield, Ultra Flexible Coaxial Cable
  • ProConnect Connector System Saves Time and Ensures Quality

VHF Marine Whip Antenna Bullet Points

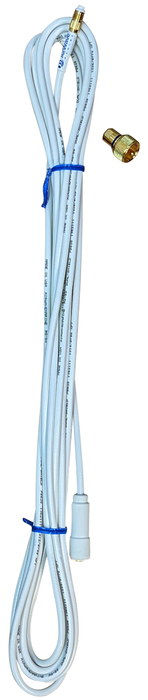

ProConnect Cable System

Machine Crimped Connector

Slim Profile Connector

Screw On Adapter



SPECS SPECS
Frequency Marine 156-162 MHz
Gain 6dBi
Water Surface Enhanced Gain 7/9 dBi
Max Power 75 Watts
SWR 1.4:1 AVG
Bandwidth 6 MHz
Signal Polarization Vertical
Impedance 50 Ohms
Lightning DC Grounded
Overall Length 36"
Whip Flexible

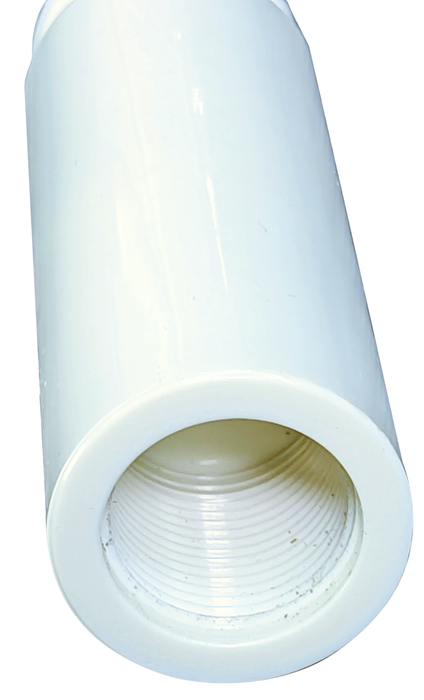

Ferrule Base Stainless Steel or Plastic
Cable Dual Shield, Low Loss
Cable Length 15 Feet
Connector ProConnect PL-259 UHF
Color Stainless Steel
Warranty Lifetime
Assembly USA
